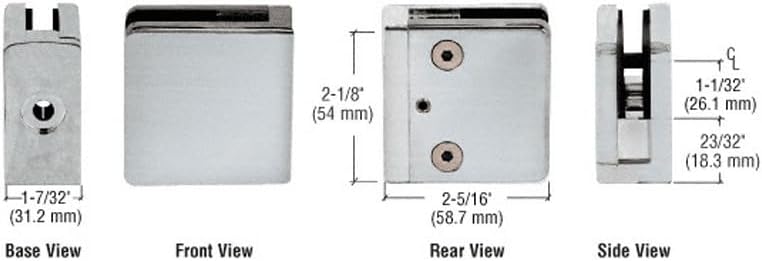

C.R. LAURENCE Z912BS CRL Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass

Designed to Accommodate 1/2" (12 mm) Glass Thickness The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks Steel Pin Available for Additional Glass Support This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass 1/2 inch (12 millimeter) thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects. Color: Brushed Stainless Width: 2-1/8 in (54 mm) Height: 2-5/16 in (58.7 mm) Minimum Order: 1 Each Additional Product Information: For securing the Z-Clamp to thin wall tubing (less than 1/8 inch), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2 inch (12 millimeter) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut. 9/16 inch (14 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support. SPECIFICATIONS Glass Thickness: 1/2 inch (12 millimeter) glass Base Design: Flat For Use With: Square tubing or other flat surfaces Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Coated Painted Zinc Clamps are suggested for more durability in exterior applications For 1/2 inch (12 millimeter) glass, a 9/16 inch (14 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support. Includes: Rubber Gaskets, Grommet and Steel Pin (for optional use)

• Designed to Accommodate 1/2" (12 mm) Glass Thickness
• The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks
• Steel Pin Available for Additional Glass Support
• Color: Brushed Stainless
• Width: 2-1/8 in (54 mm)
• Height: 2-5/16 in (58.7 mm)
• Minimum Order: 1 Each
