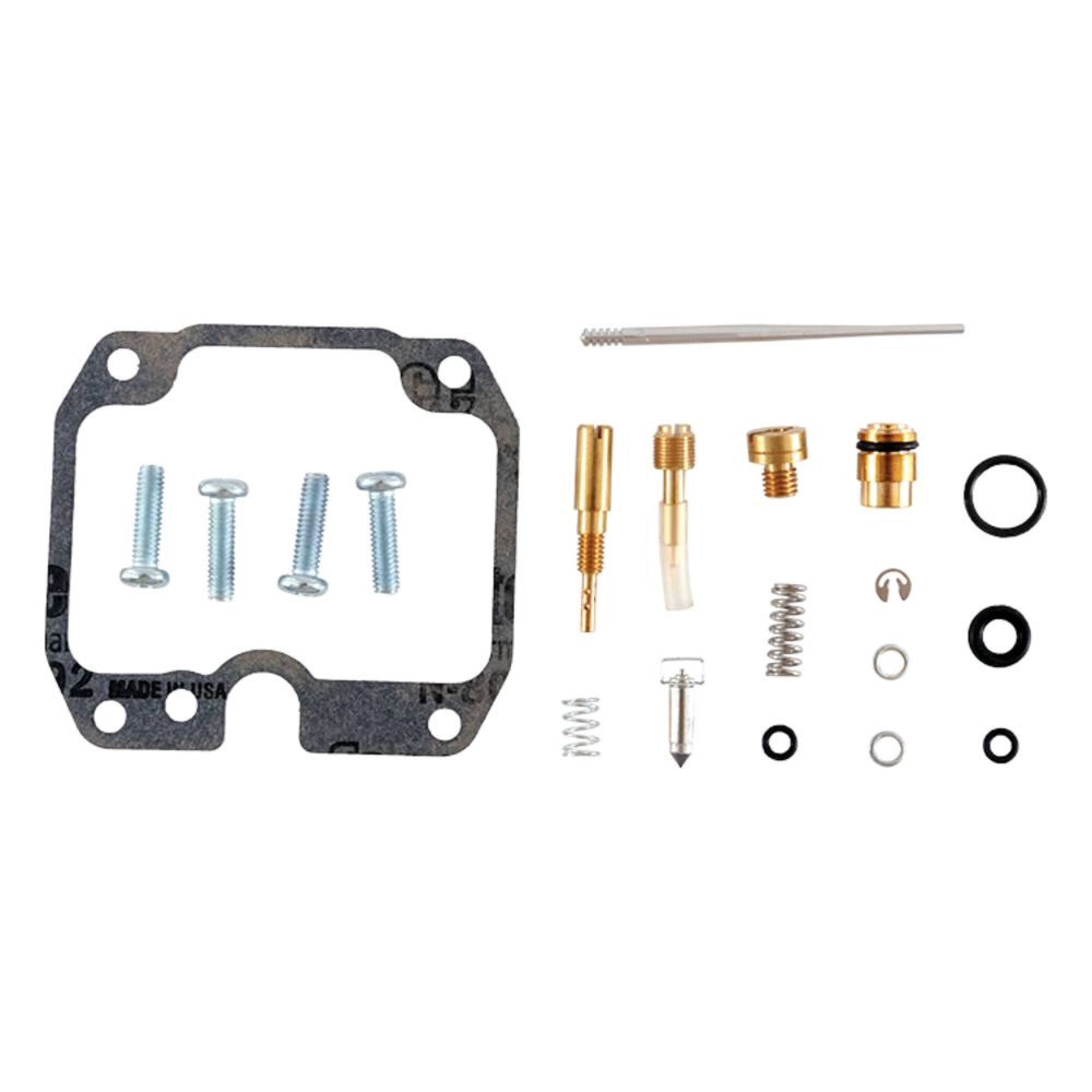

Carburetor Kit Compatible with Kawasaki KLF220A Bayou 220 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 215cc Mikuni VM24SS Carb Rebuild 15003-1564 185cc 66mm ATV NUMBERS 15003-1080

<b>OEM PART NUMBERS:</b><br> • Kawasaki: 15003-1564 (Carb Assembly)<br> • Kawasaki: 15003-1080 (Carb Assembly)<br> • Kawasaki: 15003-1533, 15001-1382<br><br> <b>SPECIFICATIONS:</b><br> • Product Type: Carburetor Rebuild Kit<br> • Carburetor: Mikuni VM24SS (24mm Round-Slide)<br> • Condition: New<br><br> <b>APPLICATION:</b><br> • Kawasaki KLF220A Bayou 220 (1990-1999)<br><br> <b>Kawasaki KLF220A Bayou 220 Carburetor Rebuild Kit 1990-1999</b><br> Complete carburetor rebuild kit for the 1990-1999 Kawasaki KLF220A Bayou 220. The Bayou 220 was the foundation of Kawasaki's Bayou ATV family that would eventually span five displacements from 185cc through 400cc across a production run stretching from 1985 to 2011. The 220 was introduced in 1988 as a replacement for the original KLF185 Bayou 185, bringing increased displacement, more power, and a refined chassis. The KLF220A model code covers all Bayou 220s from 1988 through 2002, with yearly suffix designations A1 through A15. The 215cc air-cooled SOHC engine with 66mm bore and 61mm stroke became one of the most proven small-displacement ATV powerplants in history. Shaft drive, sealed drum brakes, and automatic clutch make the Bayou 220 virtually maintenance-free beyond basic fluid changes. This kit restores factory carburetor performance with all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, and float valve needle and seat. NBR rubber O-rings and upgraded interface gasket material resist ethanol-blended fuels.

• Rareelectrical Compatible With Kawasaki
• Kawasaki Klf220a Bayou 220: • Kawasaki Klf220a Bayou 220 (1990-1999) Engine Specifications: • 215Cc Air-Cooled Sohc Single-Cylinder Four-Stroke • Bore X Stroke: 66Mm X 61Mm (2.6" X 2.4") • Compression Ratio: 9.3:1 • Carburetor: Mikuni Vm24ss (24Mm Round-Slide) • Main Jet: #110, Pilot Jet: #30 • Ignition: Dc-Cdi (Capacitor Discharge Ignition) • Spark Plug: Ngk D8es Drivetrain: • Transmission: 5-Speed + Reverse, Constant Mesh, Return Shift • Clutch: Automatic Wet Centrifugal (Primary) / Wet Multi-Disc (Secondary) • Drive: Shaft Drive (Cardan) • Drive System: 2Wd Chassis: • Frame: Double Cradle Steel • Front Suspension: Macpherson Strut • Rear Suspension: Swingarm With Single Shock, Preload Adjustable • Front Brakes: Sealed Drum • Rear Brakes: Sealed Drum • Starting: Electric With Recoil Backup • Fuel Tank: 10 L (2.6 Us Gal) With 2 L Reserve
• Oem Part Numbers: • Kawasaki: 15003-1080 (Carburetor Assembly) • Kawasaki: 15003-1564 (Carburetor Assembly) • Kawasaki: 15003-1533 (Carburetor Assembly) • Kawasaki: 15001-1382 (Carburetor Assembly) Specifications: • Product Type: Carburetor Rebuild Kit • Carburetor: Mikuni Vm24ss (24Mm Round-Slide) • Jetting: Main Jet #110, Pilot Jet #30, Air Jet #180 • Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle And Seat • O-Ring Material: Nbr Rubber (Ethanol Resistant) • Oem Jet Sizes Included • Paper Float Bowl Gaskets Upgraded To High Performance Interface Gasket Material • Condition: New
• Source: Aftermarket
• One Year Manufacturer's Warranty.
