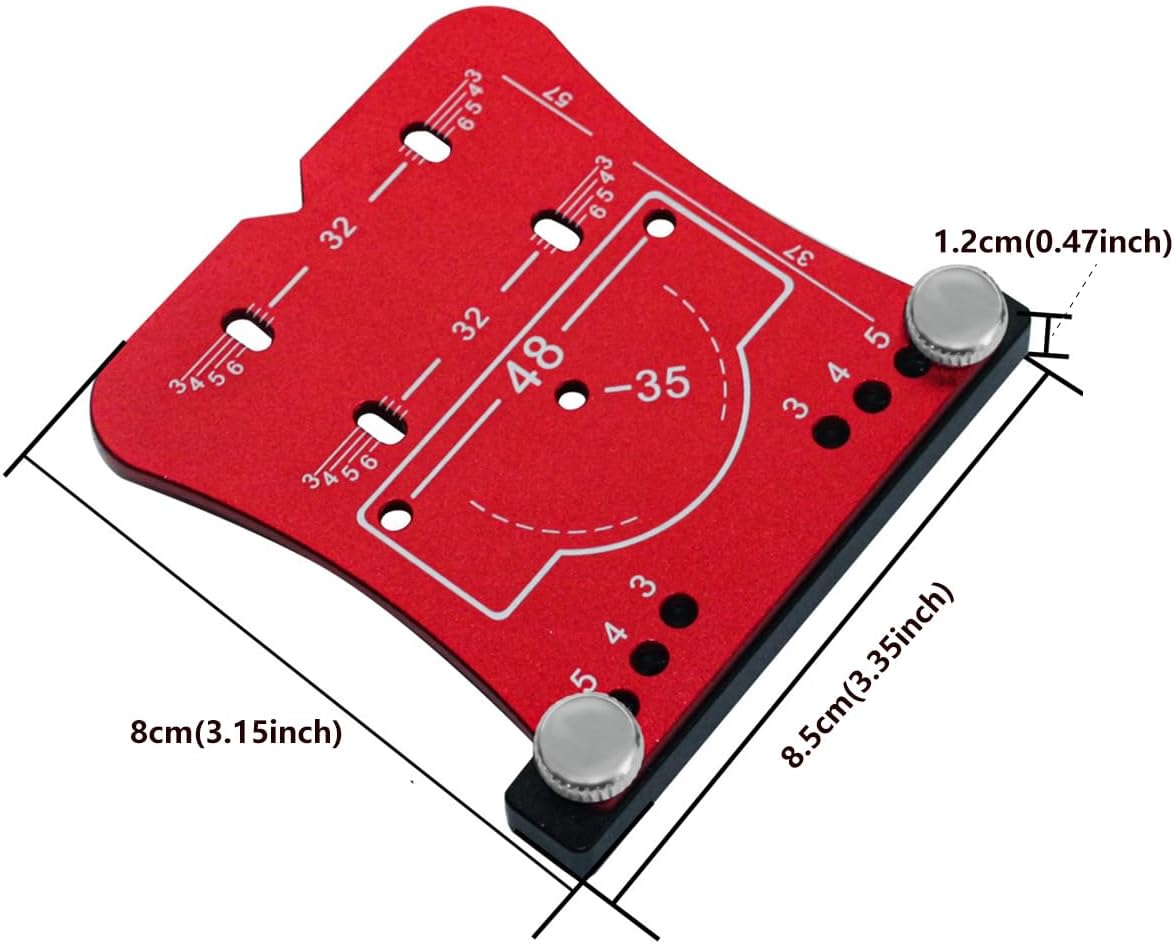

Cabinet Door Hinge Jig Concealed Door Hinge Jig Cabinet Hinge Template Jig for Woodworking Marking Template for 35mm Concealed Hinges

Specifications: - Color: Red - Material: Aluminum alloy - Item Weight: 2.88 ounces - Package included: 1 x door hinge template jig How to install Step 1. Determine the installation location of the hinge and draw a line connecting the two boards. Step 2. Set the required hinge offset. Step 3. Line up the notch with the line on the cabinet door, mark the hole positions of the hinge cup and screws. Step 4. Line up the notch with the line on the side panel, mark the hole positions of screws. Step 5. Drill the hinge cup hole and screw holes. Step 6. Install the hinge.

• This is a simple and accurate cabinet door hinge marking template, it helps you easy to mount cabinet door; Mark it, drill It, and mount it.

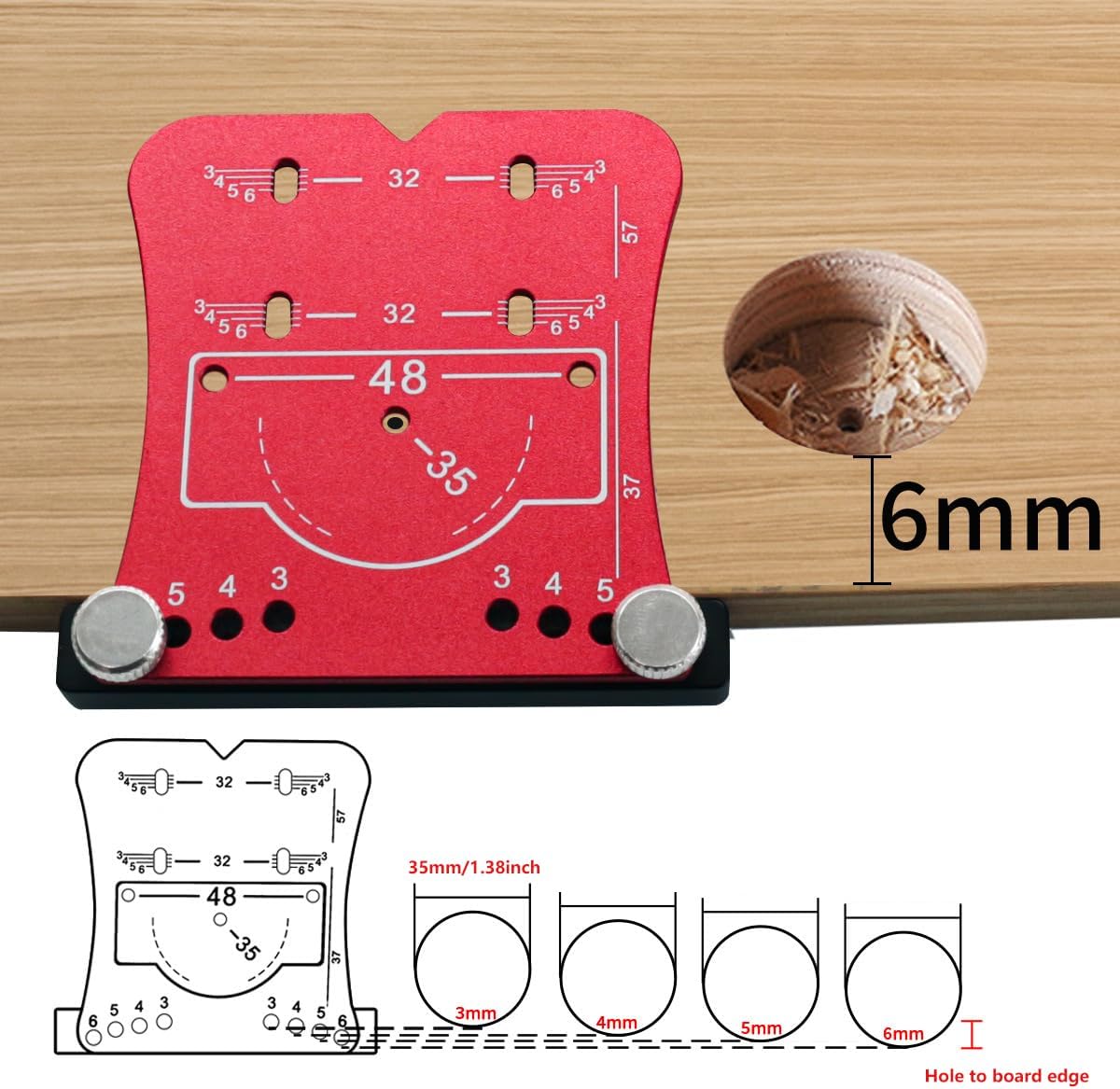

• Designed for concealed hinges with 35mm cup, work with 3mm,4mm,5mm and 6mm hinge offsets.
• Simply align the cabinet door hinge jig tool with the marking line, position it on the door or cabinet, and mark the hole center and screw holes effortlessly.
• The concealed hinge jig for cabinet doors is made of aluminum alloy, sturdy and well machined, anodized finish, resistance to breakage or deformation, long service life.
• It is also marked well with bright and easy to read lettering, laser etched, never disappear. widely used for cabinet door, wardrobe, and storage cabinets, etc.
